Flexible Graphical Maps
Schematic Site Mapping within Inner Range’s Enterprise Solution provides operators with a dynamic and vectorized graphical interface to dynamically display and interact with the entire security solution. Powered by the Integriti technology platform, entities within the Enterprise Solution, such as doors, zones, and cameras, are intuitively displayed within the schematic maps to simplify navigation throughout the site.
Map icons indicate the locations and real-time state of field devices connected to Integriti, such as access control doors and alarm devices, and also those of integrated sub-systems, such as CCTV cameras, intercoms, BMS points and much more. The map graphics provide a readily identifiable visual indication of the area in view by the operator enhancing the effectiveness and efficiency of security operations and "situational awareness".
Vectorized Interface

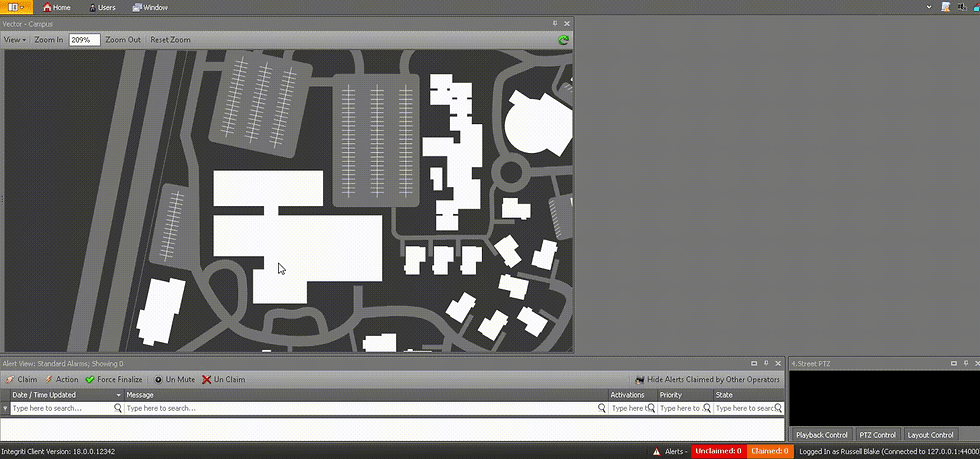

The maps are vector based providing crisp and clear images at any zoom level. Map elements are dynamically scaled to reduce the visual noise an operator has to contend with on a busy system.
Furthermore, Integriti supports the ability to automatically zoom into a map or area when an alarm occurs. Depending on the zoom level, details can automatically appear/disappear to show the operator only the key information required to action events.
Nested & Global Maps

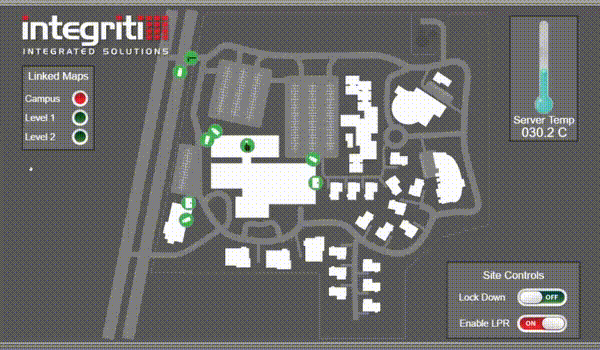

Maps can be easily nested, providing operators a clean view of multi-story sites for more effective monitoring of their system.

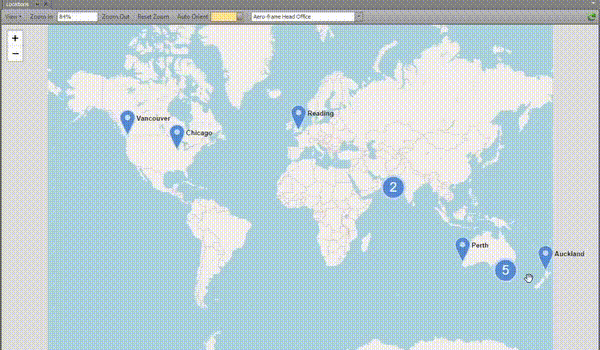

In addition, global maps can be used, much like Google Maps, by placing building maps at their real-world geographical location and therefore presenting a single visualised dashboard for multi-site organisations.
Integriti includes an intuitive map editing suite that allows operators to import their own maps, customise icons, draw shapes, setup single-click actions and much more.
Inner Range’s Schematic Site Maps dramatically increases operator efficiency and response times through precise, detailed and accurate event displays with physical geographical locations. By automatically presenting relevant alarm details whena situation occurs, security is enhanced for your premises, your assets, and your people.
For more information on using schematic maps to keep your site secure, contact your local Inner Range Representative.
