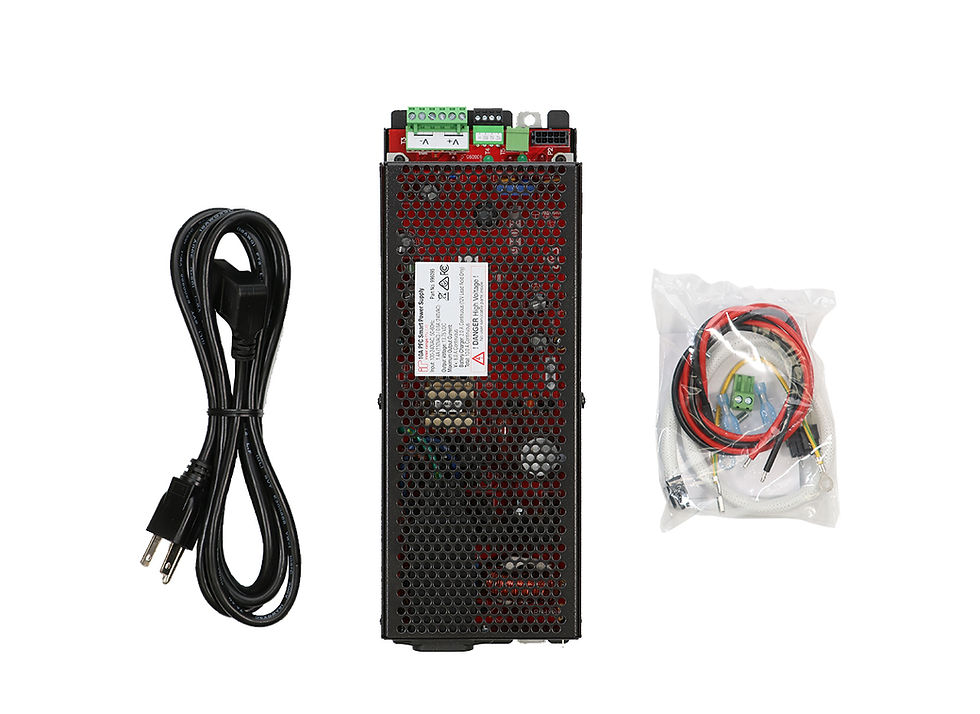

The 10 Amp 13.75VDC Power Factor Corrected (PFC) Smart Power Supply Unit (PSU) is a highly efficient power supply solution designed to meet the modern high-spec requirements unique to access control and intruder systems. Monitoring the power supply status is pivotal to the operation and performance of any security system, and the Inner Range 10 Amp smart PSU delivers this very effectively.
The 10 Amp smart PSU is designed primarily for use as a battery-backed supply for Inner Range modules supporting the Quick-Connect “External Power” bus connection. This includes the Standard LAN Access Module (SLAM), the Intelligent LAN Access Module (ILAM), the 8 Zone LAN Expander and the Integriti Access Controller (IAC).
When connected to Inner Range modules the 10 Amp smart PSU offers Quick- Connect status monitoring of critical power-related aspects such as Battery Fault, Low Battery, Battery Not Present, Battery Failed Test, AC Supply Failure, Supply Low Volts, Power Supply Failure and status monitoring of all Smart Fuses. It also features general purpose AC Fail & Battery Fail alarm outputs and a separate Battery Charger output with Deep Discharge Protection.
Featuring a highly reliable design that offers exceptional stability when used with the recommended battery type the 10 Amp smart PSU is also suitable for providing power to card readers including Proximity type reader heads and can be used as a general purpose, battery-backed supply to power legacy or 3rd party equipment via the plug-on screw terminals.
